Black Box

The Black Box is a new smartphone timing system with the proven reliability, accuracy, and precision of the Brower TCi system at an entry level price. Designed to capture, store and display testing data for individuals and small groups for many applications.

Configure to your needs

Don’t know exactly what you need? Contact us and we can recommend the right system.

Systems Static Starts Flying Starts Shuttles/Drills Split Times
Black Box with Motion Start ✓ ✓
Two Gate Black Box ✓ ✓ ✓
Black Box with Extra Gate ✓ ✓ ✓ ✓
      System Features       Black Box       TCi
Wireless✓✓
Easy to Setup and Use✓✓
Ultra Portable✓✓
Accuracy 0.01 sec✓✓
Brower Clock (Does not rely on smart phone for measurement)✓✓
View Times on Smart Phone✓✓
Expandable With Split Times✓✓
Dedicated Hand Held Timer✓
Athlete Number Tracking✓
1000 Athlete Memory✓
Radio Range60 Yards250 Yards
App Features Black Box       TCi
Inlcuded with System✓OPTIONAL
Unlimited Use of the App✓✓
Athlete Names and Numbers✓
Data Sorting✓
Export Timing Data to PC✓

Black Box vs TCi

TIMING
FOR
ALL

Speed Evaluation

Strength & Conditioning

Testing & Research

Football

Hockey

Soccer

Tennis

Baseball

Rugby

Curling

Equestrian

Auto Cross

Drag Racing

BMX

Set Up Configurations

Motion Start Setup

  • The Motion Start can be used for Standing Starts or 3 point stances

  • Turn Motion Start on by holding down the red button until there is one beep

  • Place hand (3/4 point stance) or foot (standing start) in front of the motion start.
    The unit will beep twice to say that it is “armed”

  • The Motion Start will trigger when the hand or foot is moved off the ground

Static Start Sprint

  • Equipment Required: The Black Box System

  • The Motion Start starts timing on foot or hand motion

  • The Motion Start works for standing, 3 point or 4 point stance starts.

  • The Black Box PhotoGate A and B stops timing when the beam is broken at the finish line

  • Times are displayed on an iOS or Android device using the free Black Box App.

Flying Start Sprint

  • Equipment Required: 2 Gate Black Box system or the Black Box system with an extra gate

  • Great for flying 10 yard sprints

  • The PhotoGate A and B start the time when the beam is broken at the start.

  • The Black Box PhotoGate A and B stops timing when the beam is broken at the finish line

  • Times are displayed on an iOS or Android device using the free Black Box App.

Sprint with Split Times

  • Equipment Required: The Black Box System and one or more extra PhotoGates.

  • The Black Box Motion Start starts timing on foot or hand motion

  • The Motion Start works for standing, 3 point or 4 point stance starts.

  • The PhotoGate A and B records a split time when the beam is broken.

  • The Black Box PhotoGate A and B stops timing when the beam is broken at the finish line

  • Times are displayed on an iOS or Android device using the free Black Box App.

5-10-5

  • Equipment Required: only the Black Box Gate

  • The Athlete sets up to the side of the gate so that when they start they break the beam

  • The Athlete will pass through the gate 3 times. Once at the start, a second time half way through, and a 3rd time as they finish. The second time is recorded as a split.

  • Times are displayed on an iOS or Android device using the free Black Box App.

L Drill

  • Equipment Required: only the Black Box Gate

  • The Athlete starts and stops the timing by crossing the Start/Finish line

  • Times are displayed on an iOS or Android device using the free Black Box App.

Brower Black Box Sprint Timing

Components

Affordable, Reliable, and Accurate

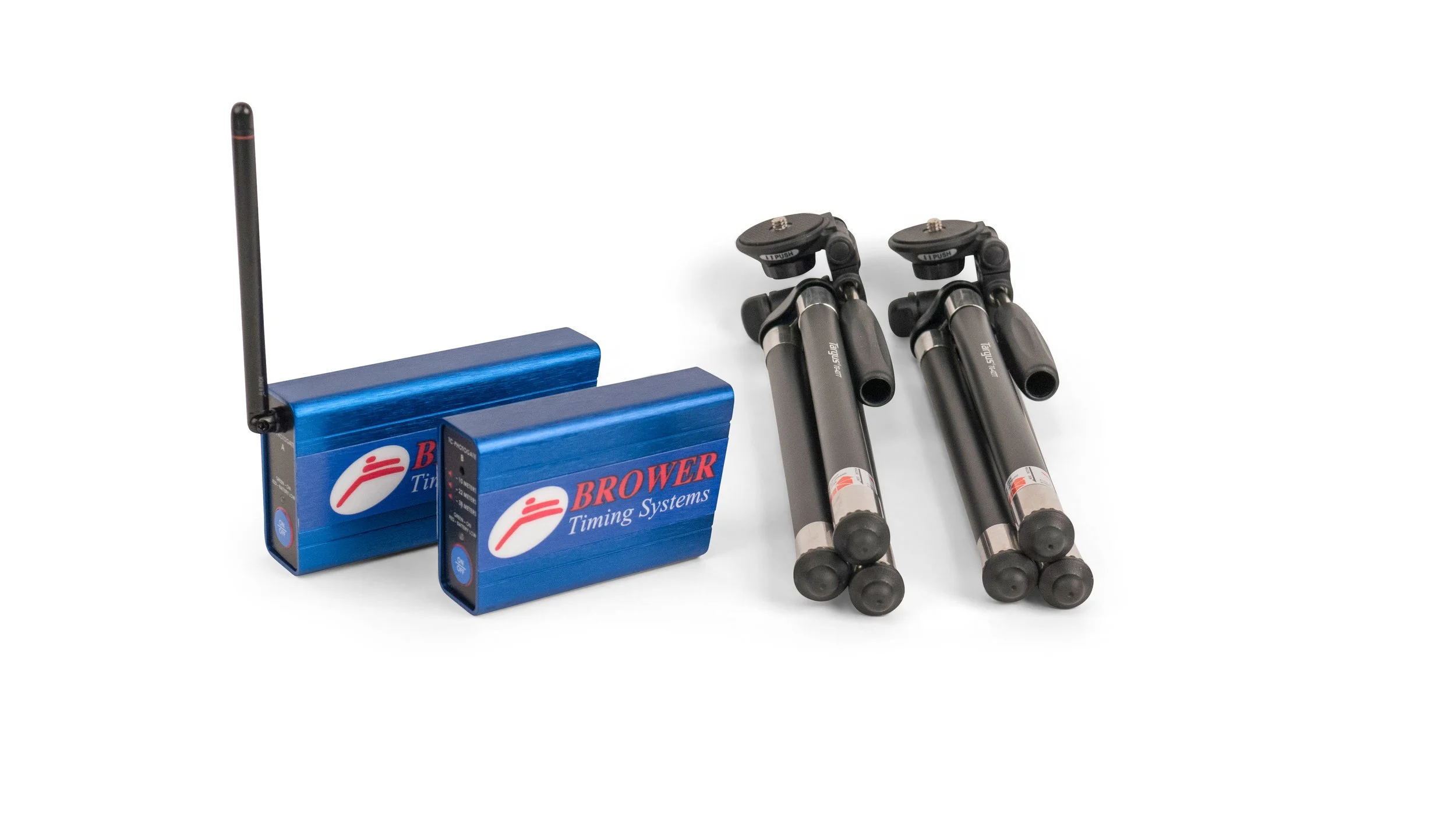

Black Box Gate

Highly accurate and reliable radio link to to the Motion Start. The Black Box measures times using the same proven technology as the TCi system. The smartphone is only used to view times.

Motion Start

Delivers highly accurate results. Motion Start can trigger a start on first move or with a “ready, set, go!” sequence. Ideal for 4 point stance or standing starts

Accessories

Add these accessories to get the most out of your TCi system

TCi Photogate for Black Box

Add as many gates as you need. Can use up to 20 split gates.
